Smart Socket ®
15A / 13A

The industry recognised, Robolights designed and manufactured Smart Socket.

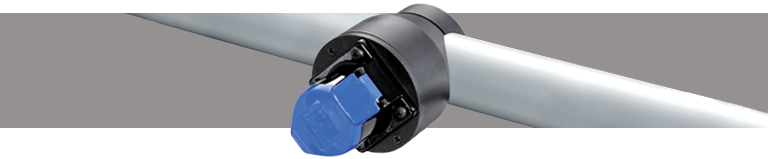

A versatile electrical socket outlet enclosure designed specifically for use on internally wired stage lighting bars.

This is the Smart Socket you need if your installation uses 15 Amp (round pin) or 13 Amp (rectangular pin) socket outlets. Smart Socket kits are shipped complete with all the necessary screws and full fitting instructions.

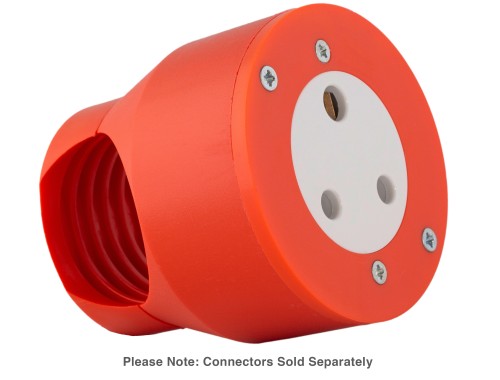

Please note that connectors need to be purchased separately, see compatible 13 and 15 Amp connectors below product image.

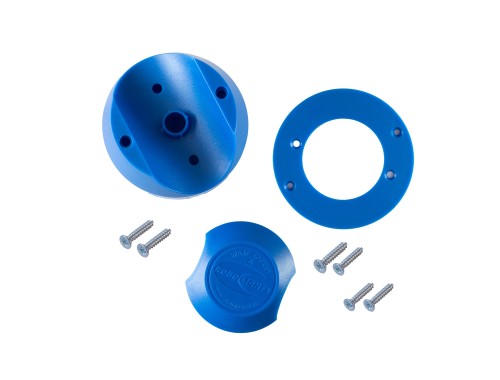

This Smart Socket kit includes a front lid that takes a 15 Amp BS546 round pin or a 13 Amp BS1363 rectangular pin (UK standard) socket outlet. All Smart Sockets are injection moulded in tough, resilient ABS and comprise of 3 parts, the body, lid and clamp. Kits are shipped with all the necessary screws to assemble them along with full fitting instructions. Smart Sockets are designed for use with standard, 48.3 mm outside diameter aluminium scaffold tubing; to fit them you only need to drill a single 16 mm hole in one wall of the tube. Then, simply press the Smart Socket into place and tighten the 2 self tapping screws; you can then install the wiring for your lighting bar.

UnitsPrice per unit
1-49Black: £7.93Colour: £8.08
50+Black: £7.05Colour: £7.19
100+Black: £6.18Colour: £6.30
15A / 13A Black15A / 13A Bits15A / 13A Front15A / 13A Side Note15A / 13A Silver15A / 13A Bits15A / 13A Front15A / 13A Side Note15A / 13A White15A / 13A Bits15A / 13A Front15A / 13A Side Note15A / 13A Blue15A / 13A Bits15A / 13A Front15A / 13A Side Note15A / 13A Green15A / 13A Bits15A / 13A Front15A / 13A Side Note15A / 13A Yellow15A / 13A Bits15A / 13A Front15A / 13A Side Note15A / 13A Red15A / 13A Bits15A / 13A Front15A / 13A Side Note
£7.93 +VAT
Add to Cart
Compatible Connectors:13A Connector15A Connector

Important:

The Robolights SmartSocket should only be installed by a suitably qualified person. The installer must also ensure that the final assembly conforms to and is in accordance with, all regional electrical wiring regulations prevailing at any time.
