Temporary stage power distribution with PTB.

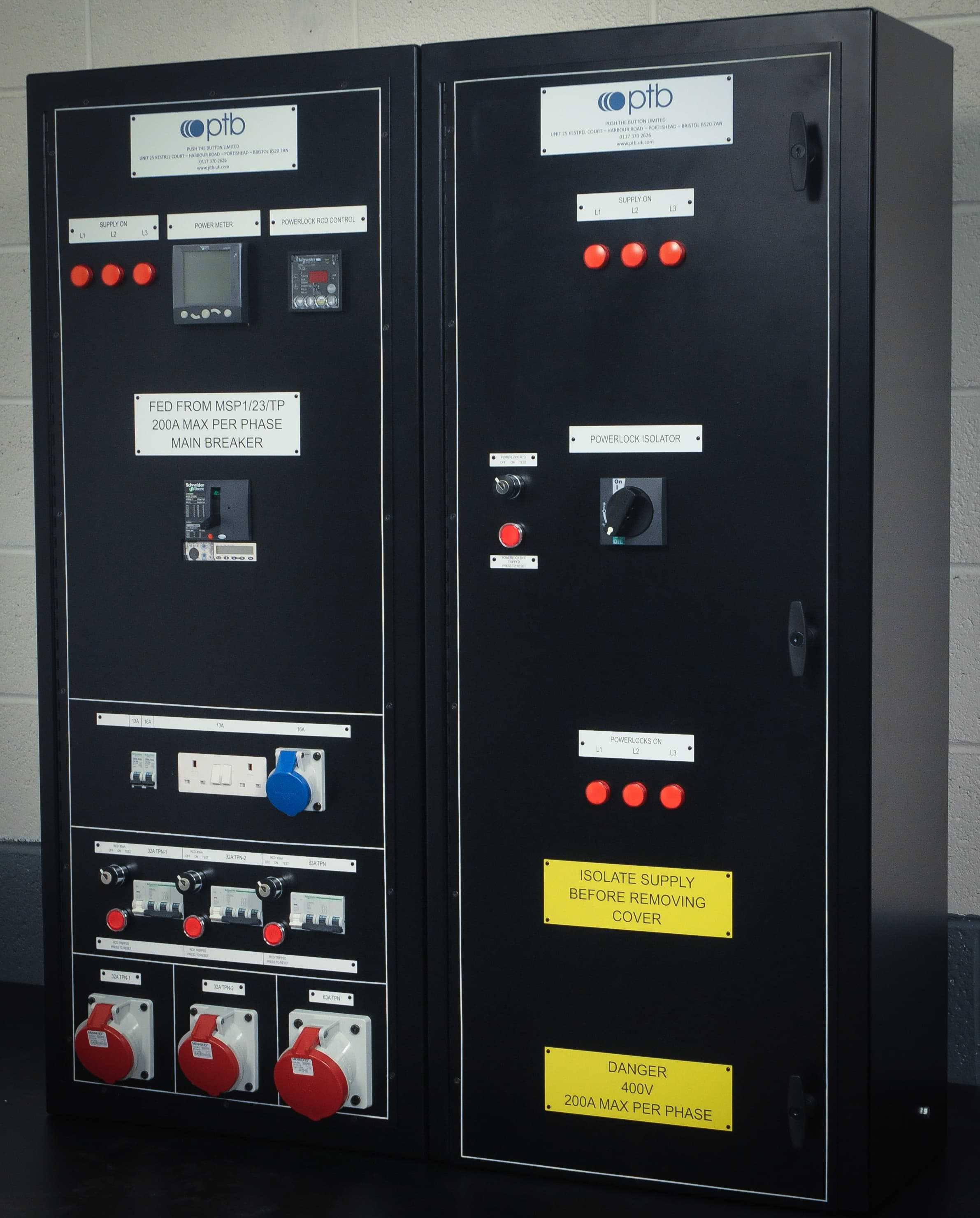

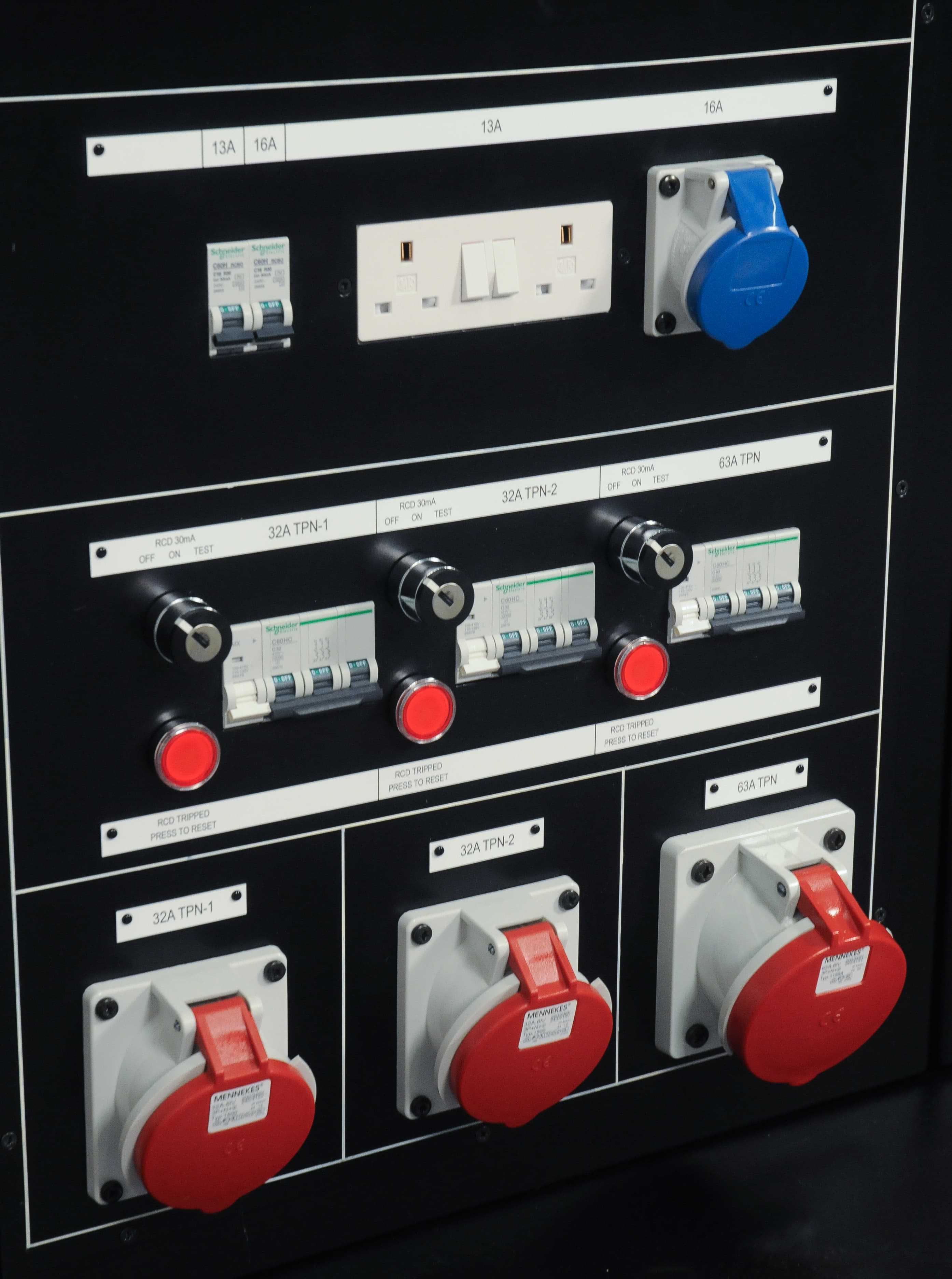

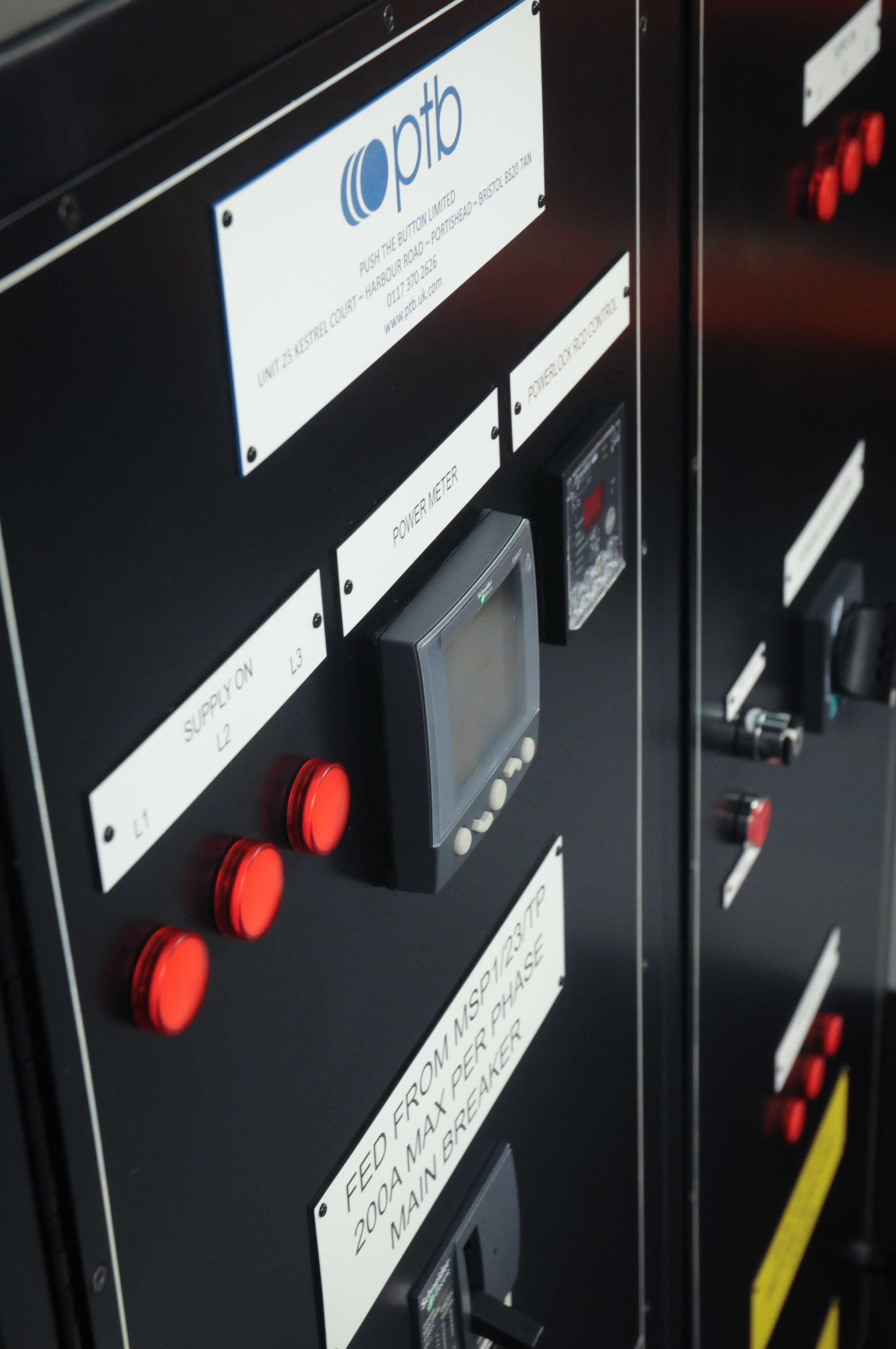

March sees us settling into our new premises in Exeter and working alongside entertainment industry specialists PTB building a side of stage temporary power distribution unit. Designed by the team at PTB to the their clients specification the unit incorporates all the features a Theatre LX would want to see. The right-hand panel provides a 200A temporary supply via Powerlock connectors complete with adjustable RCD protection and local isolation. The left-hand panel provides 13A, 16A single phase and 32A / 63A 3 phase outlets all protected by RCD's to give maximum protection and discrimination. This panel also incorporates the power monitoring and Powerlock RCD control units giving the user the full picture.
