Audio, Data & Control Connectors

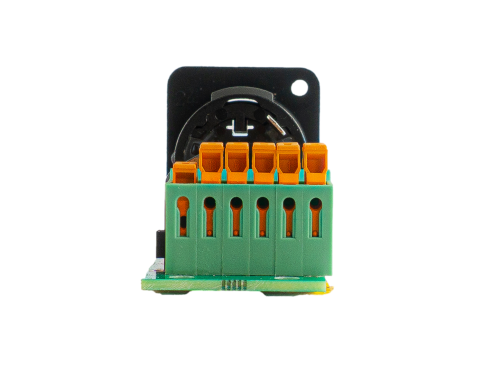

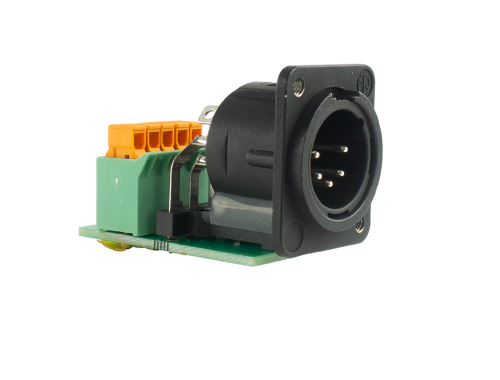

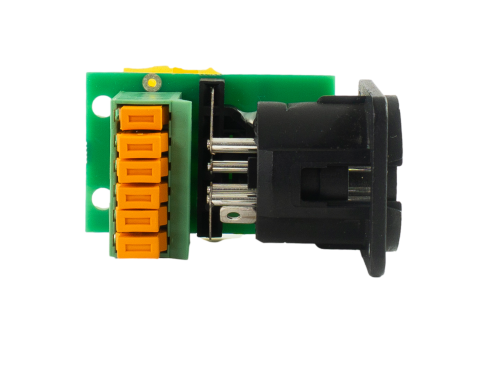

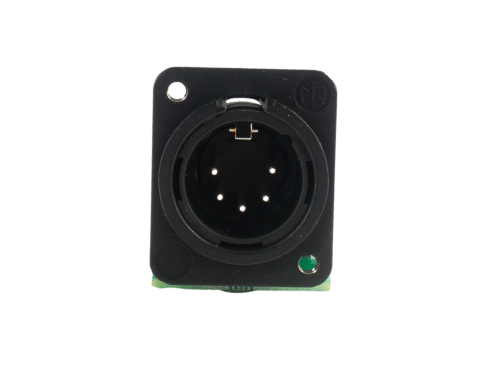

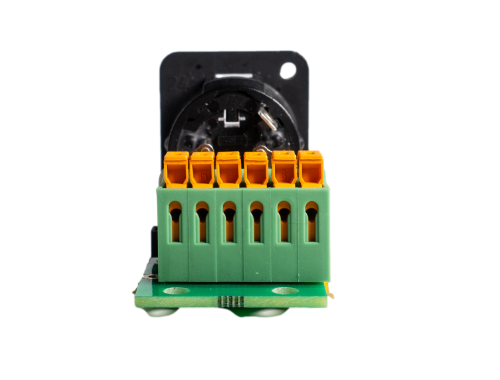

XLR 5-pin male to IDC

Neutrik XLR 5-pin male panel mount connector with adapter to provide an IDC connection at the rear. These are suitable solely for rear of panel mounting and require M3 mounting screws as the XLR shell mounting holes are threaded.

The IDC connector accepts rigid /solid conductors with a cross sectional area of 0.13 mm² to 0.34 mm² or flexible / stranded conductors with a cross sectional area of 0.22 mm² to 0.34 mm², (26-22 SWG).

NOTE These connectors are for panel mounting only and are NOT COMPATIBLE with the Robolights Smart Socket product range due to the depth of the connector assembly.
